PROTEIN SKIMMERS

The OCEANTECH™ Protein Skimmers are an effective and reliable item of equipment that significantly enhances the water quality in your aquatic systems. They can efficiently remove harmful organic proteins and waste from both the surface and lower layers of the water to ensure water clarity and cleanliness.



MS-05 / MS-40
MS-80 / MS-200
MS-250 / MS-1000

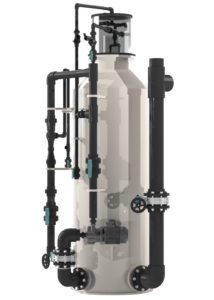

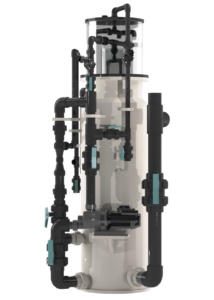

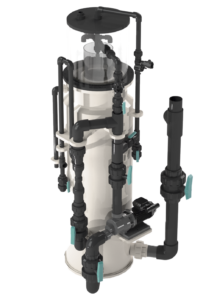

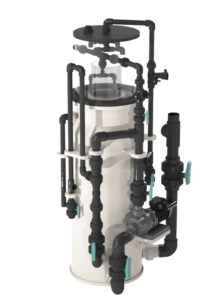

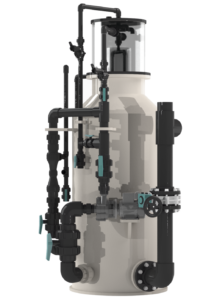

MS-05 ↔ MS-40

The OCEANTECH™ Protein Skimmers are used to separate microscopic organic compounds, protein particulate, amino acids, harmful bacteria and other detritus from saltwater systems. We provide customisable options to suit various requirements and needs. With our advanced technology it ensures energy efficiency and delivers long-lasting performance with low operating costs.

Technical Specifications
MODELMS-05MS-10MS-20MS-30MS-40
Body MaterialPPPPPPPPPP
Venturi Quantity11111
Pump ProtectionStandardStandardStandardStandardStandard
Auto Foam RinseStandardStandardStandardStandardStandard
Manual Control PanelOptionalOptionalOptionalOptionalOptional
PLC Control PanelOptionalOptionalOptionalOptionalOptional
Manhole
Glazed View
Capacity (1 RT)8,2 m³/h15,2 m³/h29,5 m³/h45,8 m³/h61,9 m³/h
Capacity (1,5 RT)5,5 m³/h10 m³/h20 m³/h30 m³/h40 m³/h
Capacity (2 RT)4,1 m³/h7,6 m³/h14,7 m³/h22,9 m³/h30,9 m³/h
Power Consumption0,42 kW0,69 kW0,71 kW0,71 kW0,97 kW
Dry Load45 kg60 kg90 kg115 kg150 kg
Operational Load198 kg315 kg620 kg880 kg1201 kg
Footprint809 mm x 629 mm895 mm x 708 mm1080 mm x 870 mm1215 mm x 980 mm1347 mm x 1096 mm
DiameterØ 430 mmØ 520 mmØ 720 mmØ 800 mmØ 800 mm
Inlet Height [a]947 mm1195 mm1208 mm1518 mm2053 mm
Outlet Height910 mm1100 mm1300 mm1450 mm1650 mm
Total Height [b]1517 mm1996 mm2117 mm2369 mm2859 mm
Inlet Pipe DiameterØ 50 mmØ 63 mmØ 90 mmØ 110 mmØ 125 mm
Outlet Pipe DiameterØ 75 mmØ 90 mmØ 140 mmØ 160 mmØ 200 mm

*The dimensions above have been customized based on specific user requirements. All of our aquaculture tanks can be tailored to suit all kinds of aquaculture projects.

MS-80 ↔ MS-200

The OCEANTECH™ Protein Skimmers are used to separate microscopic organic compounds, protein particulate, amino acids, harmful bacteria and other detritus from saltwater systems. We provide customisable options to suit various requirements and needs. With our advanced technology it ensures energy efficiency and delivers long-lasting performance with low operating costs.

Technical Specifications
MODELMS-80MS-100MS-120MS-160MS-200
Body MaterialPPPPPPPPPP
Venturi Quantity22222
Pump ProtectionStandardStandardStandardStandardStandard
Auto Foam RinseStandardStandardStandardStandardStandard
Manual Control PanelOptionalOptionalOptionalOptionalOptional
PLC Control PanelOptionalOptionalOptionalOptionalOptional
ManholeOptionalOptionalOptional
Glazed ViewOptionalOptionalOptionalOptionalOptional
Capacity (1 RT)118,8 m³/h150,6 m³/h180,1 m³/h240 m³/h300 m³/h
Capacity (1,5 RT)80 m³/h100 m³/h120 m³/h160 m³/h200 m³/h
Capacity (2 RT)59,4 m³/h75,3 m³/h90 m³/h120 m³/h150 m³/h
Power Consumption1,42 kW1,94 kW3,8 kW3,8 kW3,8 kW
Dry Load220 kg265 kg315 kg350 kg510 kg
Operational Load2301 kg2856 kg3406 kg4563 kg5732 kg
Footprint1663 mm x 1475 mm1677 mm x 1753 mm1908 mm x 1712 mm2136 mm x 1926 mm2230 mm x 2010 mm
DiameterØ 1130 mmØ 1270 mmØ 1300 mmØ 1450 mmØ 1600 mm
Inlet Height [a]1975 mm1983 mm2262 mm2424 mm2488 mm
Outlet Height1650 mm1750 mm1850 mm2100 mm2250 mm
Total Height [b]2864 mm2914 mm3173 mm3368 mm3492 mm
Inlet Pipe DiameterØ 160 mmØ 200 mmØ 200 mmØ 225 mmØ 200 mm
Outlet Pipe DiameterØ 250 mmØ 280 mmØ 280 mmØ 315 mmØ 355 mm

*The dimensions above have been customized based on specific user requirements. All of our aquaculture tanks can be tailored to suit all kinds of aquaculture projects.

MS-250 ↔ MS-1000

The OCEANTECH™ Protein Skimmers are used to separate microscopic organic compounds, protein particulate, amino acids, harmful bacteria and other detritus from saltwater systems. We provide customisable options to suit various requirements and needs. With our advanced technology it ensures energy efficiency and delivers long-lasting performance with low operating costs.

Technical Specifications
MODELMS-250MS-350MS-450MS-600MS-750MS-1000
Body MaterialPPPPPPPPPPPP
Venturi Quantity222233
Pump ProtectionStandardStandardStandardStandardStandardStandard
Auto Foam RinseStandardStandardStandardStandardStandardStandard
Manual Control PanelOptionalOptionalOptionalOptionalOptionalOptional
PLC Control PanelOptionalOptionalOptionalOptionalOptionalOptional
ManholeOptionalOptionalOptionalOptionalOptionalOptional
Glazed ViewOptionalOptionalOptionalOptionalOptionalOptional
Capacity (1 RT)375,4 m³/h524,5 m³/h672,5 m³/h900,7 m³/h1125,1 m³/h1495,9 m³/h
Capacity (1,5 RT)250 m³/h350 m³/h450 m³/h600 m³/h750 m³/h1000 m³/h
Capacity (2 RT)187,7 m³/h262,3 m³/h336,2 m³/h450,4 m³/h562,5 m³/h748 m³/h
Power Consumption5,1 kW6,9 kW6,9 kW9,1 kW13,65 kW13,65 kW
Dry Load620 kg790 kg905 kg1400 kg1600 kg1750 kg
Operational Load7179 kg9817 kg12492 kg16771 kg20868 kg27587 kg
Footprint2467 mm x 2207 mm2605 mm x 2410 mm2911 mm x 2661 mm3275 mm x 2975 mm3655 mm x 3305 mm4015 mm x 3700 mm
DiameterØ 1800 mmØ 2050 mmØ 2200 mmØ 2450 mmØ 2730 mmØ 2960 mm
Inlet Height [a]2460 mm2650 mm2950 mm3186 mm3205 mm3625 mm
Outlet Height2350 mm2350 mm2550 mm2750 mm2750 mm3150 mm
Total Height [b]3854 mm4160 mm4371 mm4756 mm4720 mm5230 mm
Inlet Pipe DiameterØ 280 mmØ 315 mmØ 355 mmØ 355 mmØ 400 mmØ 400 mm
Outlet Pipe DiameterØ 400 mmØ 400 mmØ 400 mmØ 400 mmØ 400 mmØ 400 mm

*The dimensions above have been customized based on specific user requirements. All of our aquaculture tanks can be tailored to suit all kinds of aquaculture projects.

Always Meet Your
Aquatic Needs

Our protein skimmers are manufactured with a focus on durability, ensuring a long-lasting solution for your aquatic environments. The lightweight and strong design makes installation and integration into existing projects or facilities easy and seamless.
