Adec LSS
Abbyz Pumps
The Abyzz team consists of experienced engineering professionals who are constantly developing innovative products. The highest quality materials ensure long lasting performance, efficiency and smoothness, while integrated protection and control functions ensure safe long lived operation. Each Abyzz pump is fully tested prior to shipping, so that we can ensure you get only the perfect product.
In addition to providing the lowest energy consumption in their class, they also show their difference with their 10-year warranty.
Adec Abyzz Pumps
Technical Specifications
A - 100
A - 200
A - 400
A - 1200
AFC - 400
AFC - 1200
-
- A – 100
| Maximum Flow Rate (m3/h) | 8,5 |
| Rated Flow Rate (m3/h) | 7,3 |
| Maximum Discharge Speed (m/s) | 5,8 |
| Power Consumption (W) | 4…100 |
| Operating Voltage (V~) | 100…240 |
| Operating Frequency (Hz) | 50…60 |
| Delivery Height (m) | 6 |
| Maximum Immersion Depth (m) | 2 |
| Pump Cable Lenght (m) | 2 |
| Inlet/Outlet Connections (mm) | 40/25 |
-
- A – 200
| Maximum Flow Rate (m3/h) | 17 |
| Rated Flow Rate (m3/h) | 14,5 |
| Maximum Discharge Speed (m/s) | 5,8 |
| Power Consumption (W) | 4…200 |
| Operating Voltage (V~) | 240 |
| Operating Frequency (Hz) | 50…60 |
| Delivery Height (m) | 8,8 |
| Maximum Immersion Depth (m) | 2 |
| Pump Cable Lenght (m) | 3 or 10 |
| Inlet/Outlet Connections (mm) | 50/40 |
-
- A – 400
-

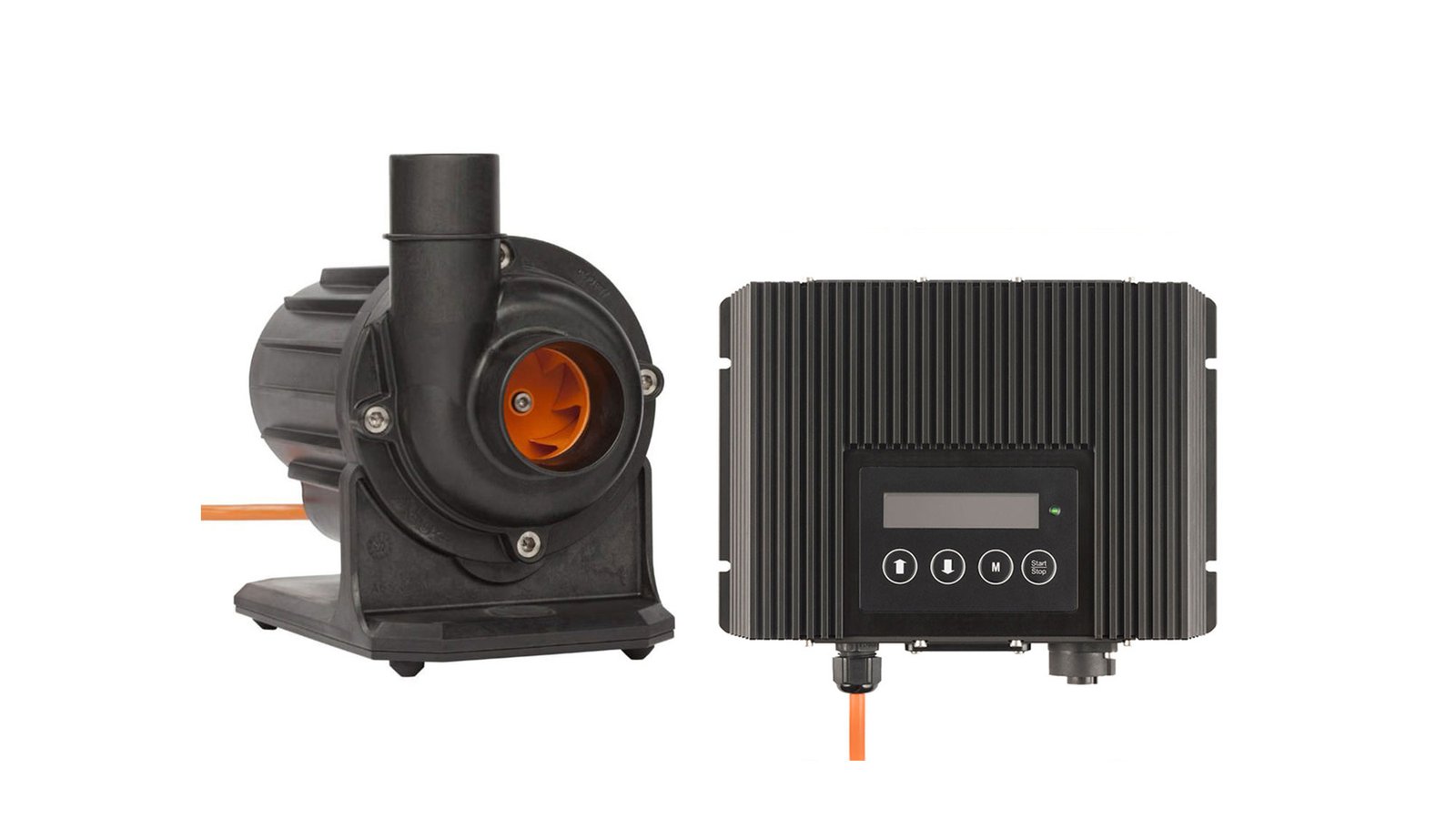

- A – 400 IPU
| Maximum Flow Rate (m3/h) | 23,5 |
| Rated Flow Rate (m3/h) | 18,6 |
| Maximum Discharge Speed (m/s) | 7,5 |
| Power Consumption (W) | 4…400 |
| Operating Voltage (V~) | 240 |
| Operating Frequency (Hz) | 50…60 |
| Delivery Height (m) | 12,5 |
| Maximum Immersion Depth (m) | 2 |
| Pump Cable Lenght (m) | 3 or 10 |
| Inlet/Outlet Connections (mm) | 50/40 |
-
- A – 1200 IPU
| Maximum Flow Rate (m3/h) | 68 |
| Rated Flow Rate (m3/h) | 48 |
| Maximum Discharge Speed (m/s) | 6,5 |
| Power Consumption (W) | 4…1200 |
| Operating Voltage (V~) | 100…240 |
| Operating Frequency (Hz) | 50…60 |
| Delivery Height (m) | 12,5 |
| Maximum Immersion Depth (m) | 2 |
| Pump Cable Lenght (m) | 3 or 10 |
| Inlet/Outlet Connections (mm) | 90/75 |
-
- AFC – 400
-
- AFC – 400 IPU
| Maximum Flow Rate (m3/h) | 220 |
| Rated Flow Rate (m3/h) | 165 |
| Maximum Discharge Speed (m/s) | 3,3 |
| Power Consumption (W) | 4…400 |
| Operating Voltage (V~) | 200…240 |
| Operating Frequency (Hz) | 50…60 |
| Delivery Height (m) | – |
| Maximum Immersion Depth (m) | 8 |
| Pump Cable Lenght (m) | 10 or 30 |
| Inlet/Outlet Connections (mm) | – |
-

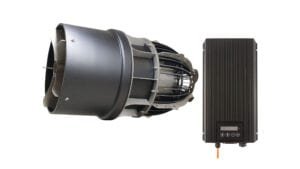

- AFC – 1200 IPU
| Maximum Flow Rate (m3/h) | 550 |
| Rated Flow Rate (m3/h) | 460 |
| Maximum Discharge Speed (m/s) | 4,5 |
| Power Consumption (W) | 4…1200 |
| Operating Voltage (V~) | 100…240 |
| Operating Frequency (Hz) | 50-60 |
| Delivery Height (m) | – |
| Maximum Immersion Depth (m) | 8 |
| Pump Cable Lenght (m) | 10 or 30 |
| Inlet/Outlet Connections (mm) | – |
