OZONE DESTRUCTORS
The OCEANTECH™ Ozone Destructors quickly convert the ozone gas in the system into oxygen by removing toxic gases such as carbon monoxide and carbon dioxide. This ensure to help produce a safe and efficient operation for your staff and aquatic species. They are compatible with the patented Oceantech CS & RS series.
- Durability, long lasting
- Minimal maintenance
- Minimum energy consumption
- Expandable and customizable
- Available with SCADA integration
- For both fresh and saltwater applications

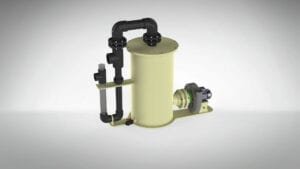

ESM Series
SLN Series
ESM Series
Technical Specifications | ||||
| MODEL | ESM-300 | ESM-400 | ESM-620 | |
| Body Material | PP | PP | PP | |
| Pipe Material | UPVC | UPVC | UPVC | |
| Radial Blower | Standard | Standard | Standard | |
| Footprint | 1450 mm x 1250 mm x 420 mm | 1500 mm x 1350 mm x 520 mm | 1540 mm x 1800 mm x 740 mm | |
| Ozone Elimination | 5 gr/L | 5 gr/L | 5 gr/L | |
| Air Flow | 42 m³/hr | 75 m³/hr | 180 m³/hr | |
| Carbon | 28,3 lt | 50 lt | 120 lt | |
| Diameter | 300 mm | 400 mm | 620 mm | |
| Dry Load | 50 kg | 60 kg | 80 kg | |
| Nominal Voltage | 380 V / 50 Hz | 380 V / 50 Hz | 380 V / 50 Hz | |
| Nominal Current | 0,85 A | 0,85 A | 1 A | |
| Engine Output Power | 250 W | 250 W | 370 W | |
| Noise Level | 49 | 49 | 63 | |
SLN Series
Technical Specifications | ||||
| MODEL | SLN-110 | SLN-160 | SLN-200 | |
| Body Material | PP | PP | PP | |
| Pipe Material | UPVC | UPVC | UPVC | |
| Footprint | 1150 mm x 200 mm x 450 mm | 1250 mm x 250 mm x 450 mm | 1350 mm x 290 mm x 580 mm | |
| Ozone Elimination | 5 gr/L | 5 gr/L | 5 gr/L | |
| Air Flow | 5 m³/hr | 10 m³/hr | 16 m³/hr | |
| Carbon | 5 lt | 10 lt | 16 lt | |
| Diameter | 110 mm | 160 mm | 200 mm | |
| Dry Load | 5 kg | 8 kg | 15 kg | |
| Nominal Voltage | – | – | – | |
| Nominal Current | – | – | – | |
| Engine Output Power | – | – | – | |
| Noise Level | – | – | – | |
*This series does not contain any electronic equipment.
Always Meet Your
Aquatic Needs
Our ozone destructors are manufactured with a focus on durability, ensuring a long-lasting solution for your aquatic environments. The lightweight and strong design makes installation and integration into existing projects or facilities easy and seamless.
