Ultraaqua UV Systems

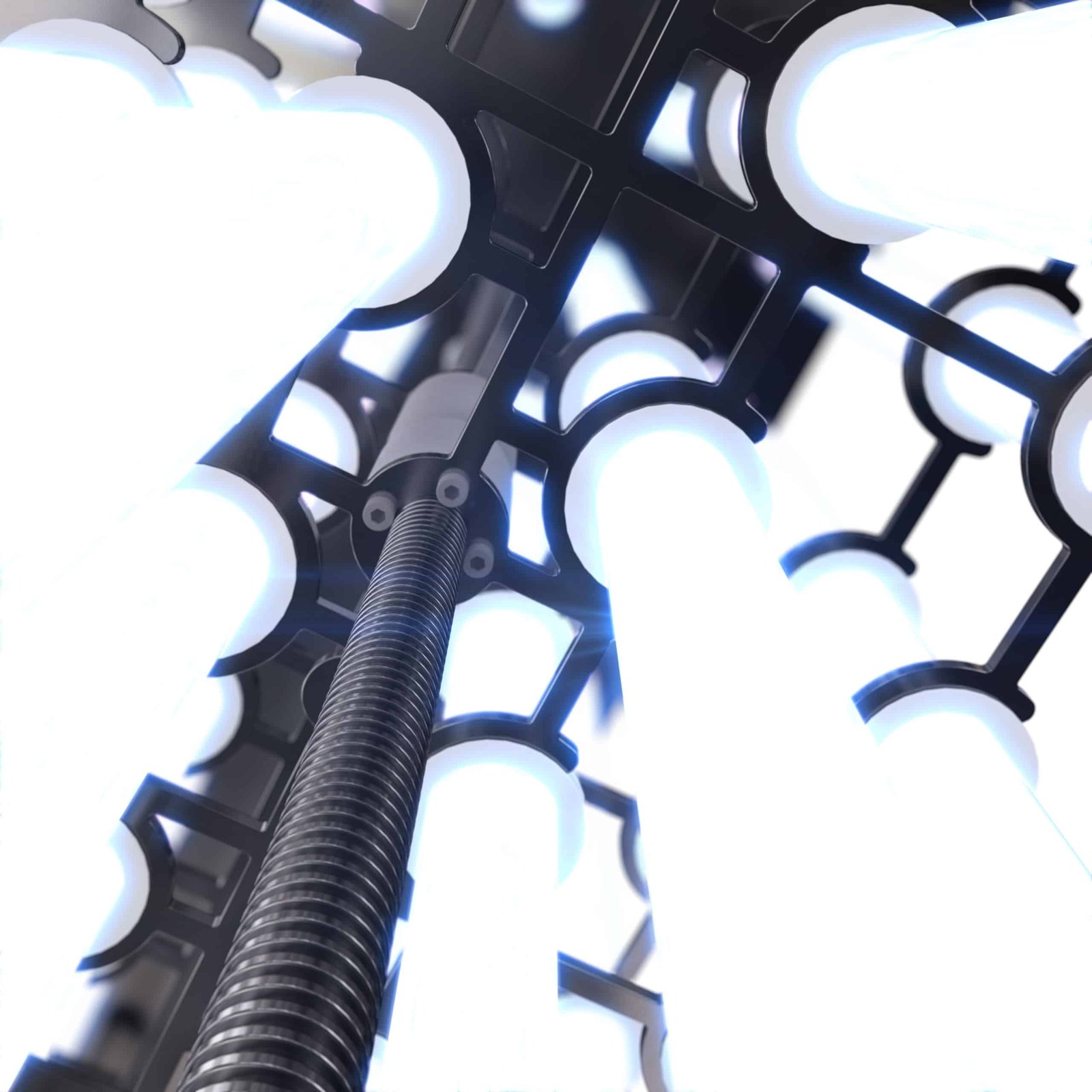

Open Channel UV Disinfection Systems

The Open Channel SS series offers safe, chemical-free disinfection for municipal and industrial wastewater disinfection. The ULTRATHERM™ 16 000-hour UV lamps technology with its cross-row layout ensures complete pathogen exposure with market leading energy efficiency.

The robust, modular shell design provides a range of scaling and retrofitting options for existing water treatment infrastructures, such as old chlorination tanks. For even further construction versatility, an inclined open channel series is available, which provides up to 30% more depth options. This makes the design easily scalable and capable of treating flows of virtually any size.

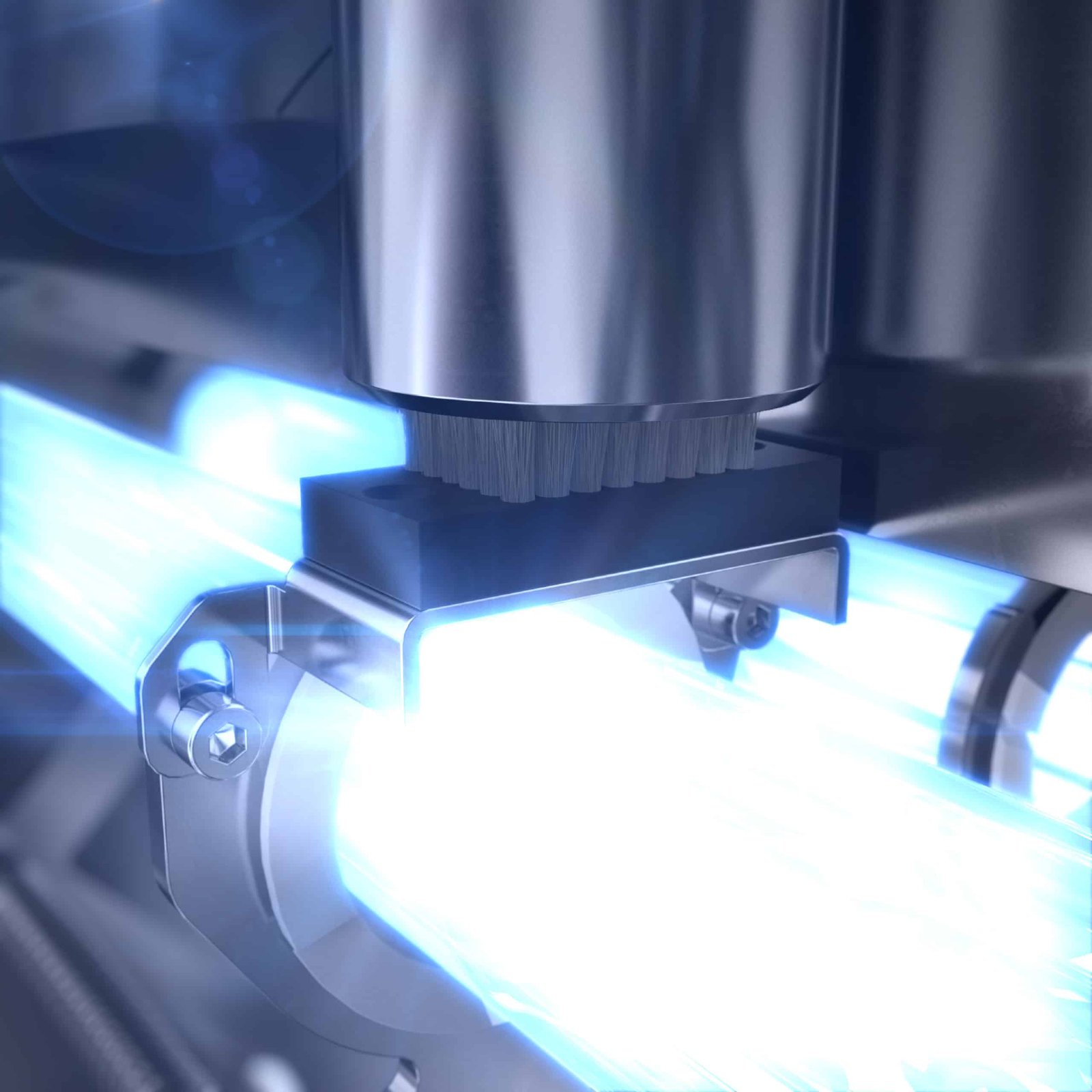

The series features a sealed top compartment where the lamps, quartz sleeves, wiping motor, and UV sensors are easily accessed. This allows for quick, easy, and hygienic maintenance procedures while the system is submerged. Additionally, the automated ULTRAWIPER™ technology ensures clean quartz sleeves with tailored brush heads, ensuring operational efficiency.

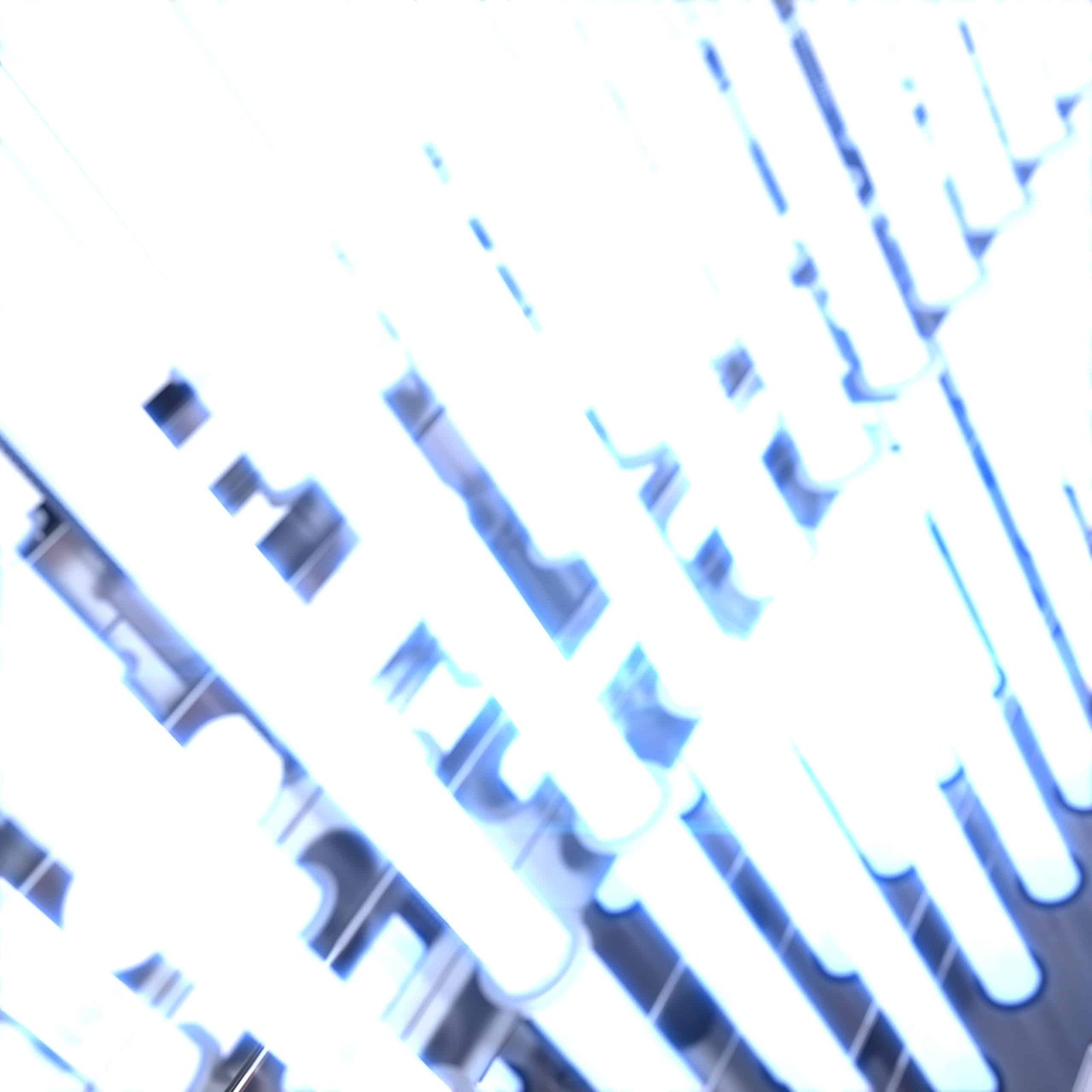

Inclined Open Channel UV Disinfection Systems

The Inclined Open Channel SS series offers safe, chemical-free disinfection for municipal and industrial wastewater disinfection. In 2001, the Inclined Open Channel series was engineered due to the industry’s dire need for a higher range of water level installations within municipal and industrial effluent applications. Since then, the design has been continuously optimized, with the latest lamp bank design offering up to 30% more depth options.

The excellent construction versatility offers excellent installation conditions and retrofitting in various channel depths and widths, able for replacing older systems, integration into chlorine contact tanks, or other water treatment infrastructures.

The series features a sealed top compartment where the lamps, quartz sleeves, wiping motor, and UV sensors are easily accessed. This allows for quick, easy, and hygienic maintenance procedures without needing to remove the channel system from the rack. Additionally, the automated ULTRAWIPER™ technology ensures clean quartz sleeves with tailored brush heads for operational efficiency. The open channel system is also available in a vertical series.

Open Channel PP UV Disinfection Systems

The Open Channel PP series offers safe, chemical-free disinfection for a wide range of applications. The vertical PP lamp banks specifically excel in intensive aquaculture applications, such as recirculation (RAS) and flow-through treatment performance where rearing of certain species requires saline environments.

The polypropylene (PP) material makes the Open Channel series the right choice for saline and highly corrosive environments, as it possesses excellent resilience to temperature fluctuation, chemicals, and salts, ideal for the disinfection of warm salt water and other corrosive fluids.

The lamp bank frame allows a wide selection of depths and widths, making the systems customizable to fit into virtually any channel dimension. Additionally, the dry top compartment allows for easy and quick standard maintenance procedures and can be done without removing the lamp bank from the water.

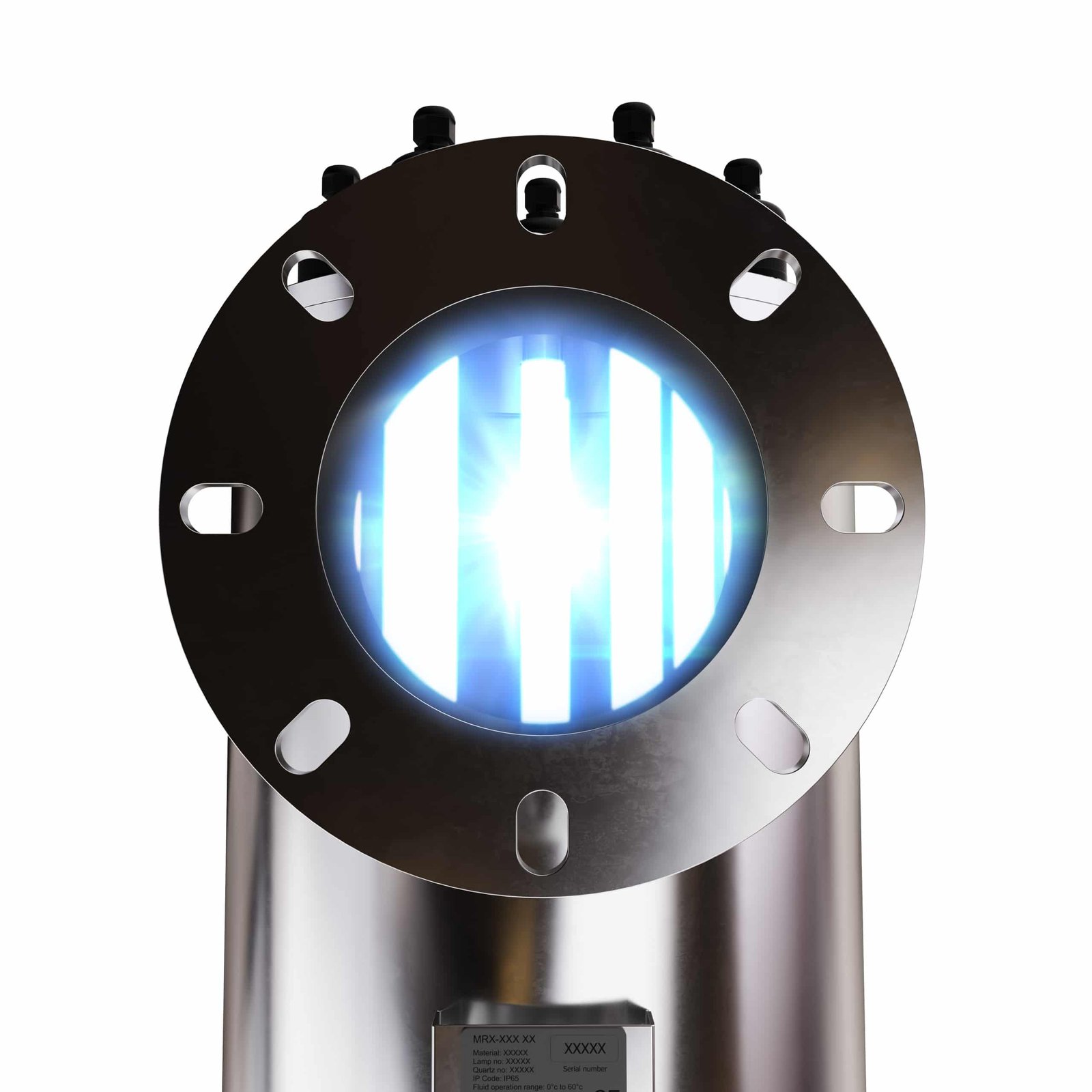

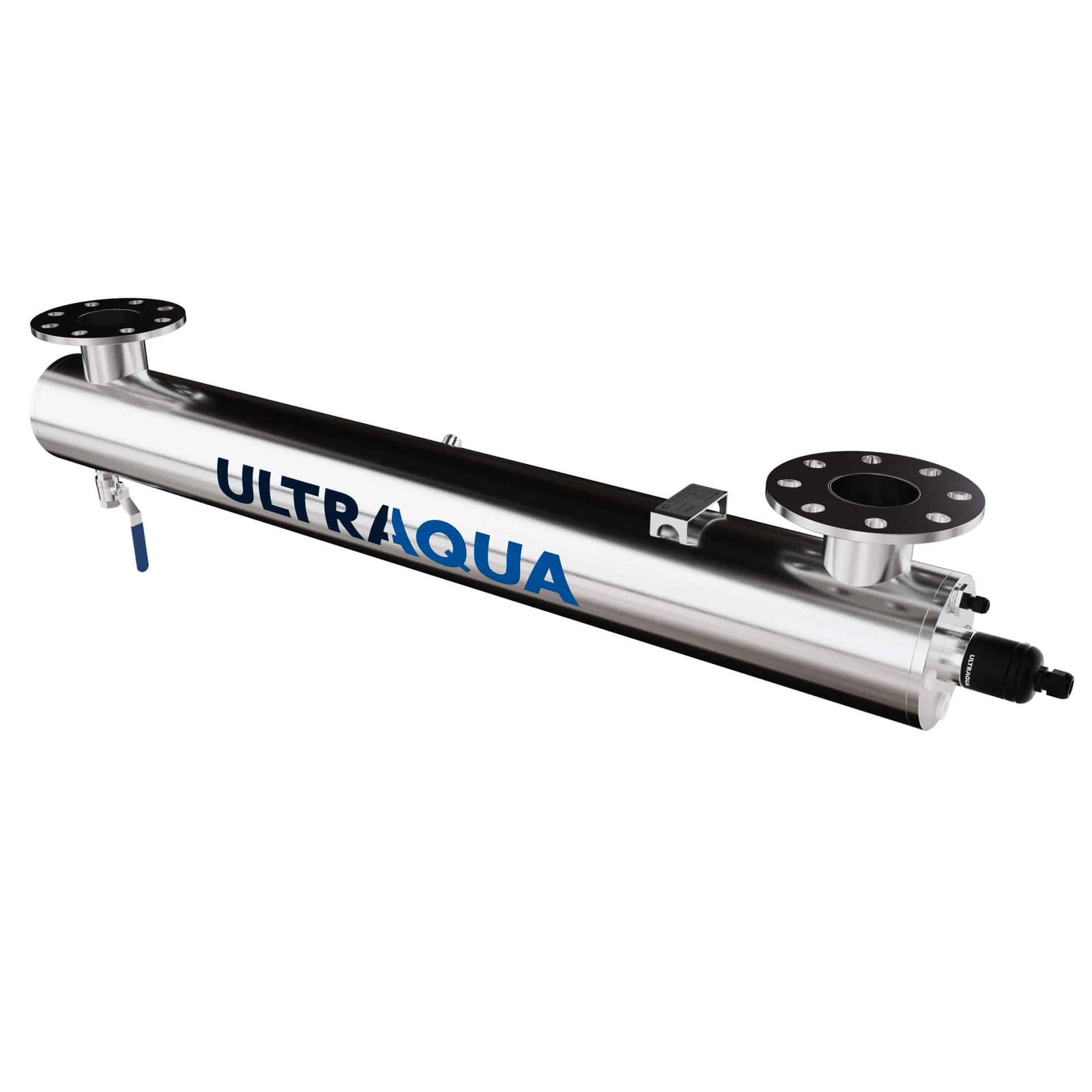

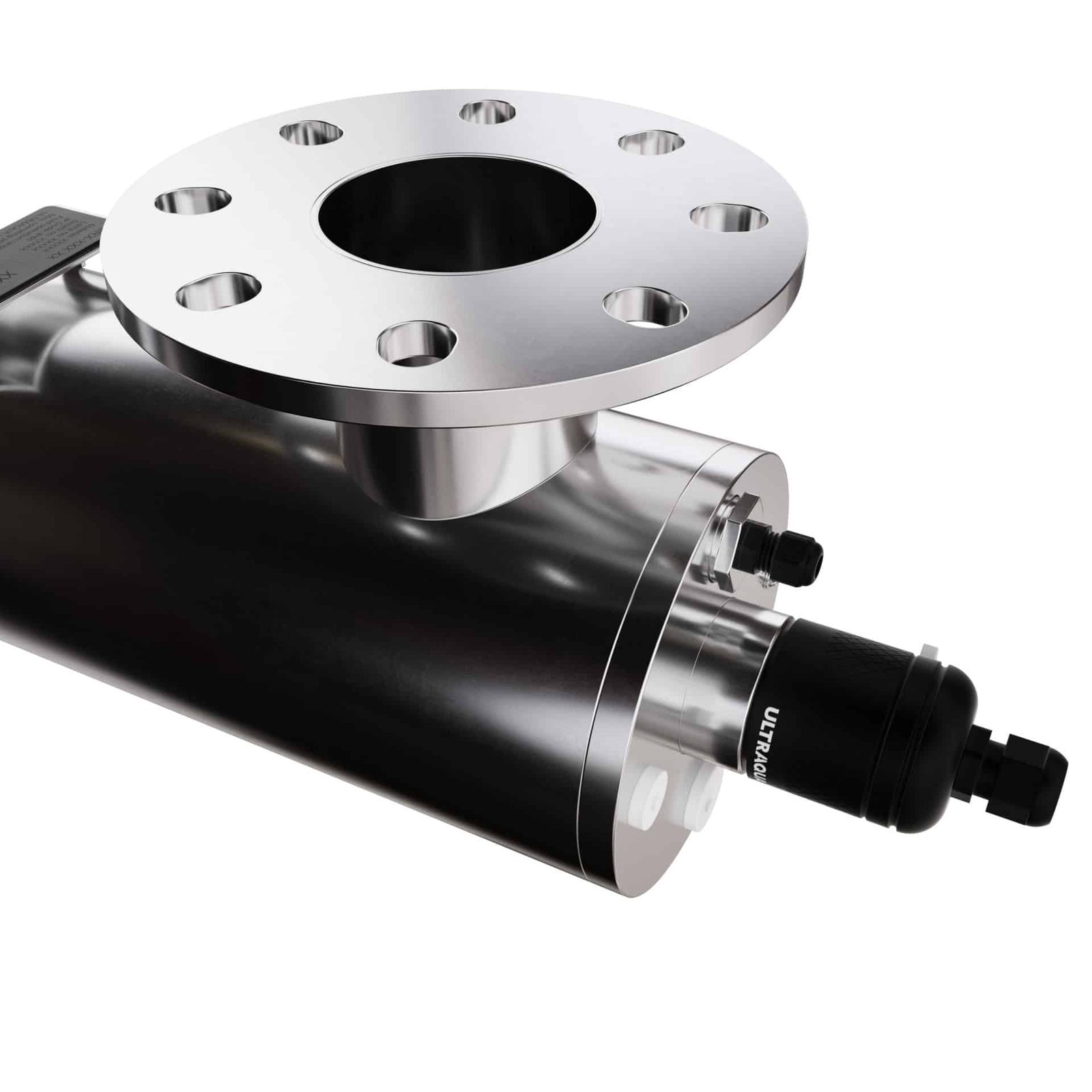

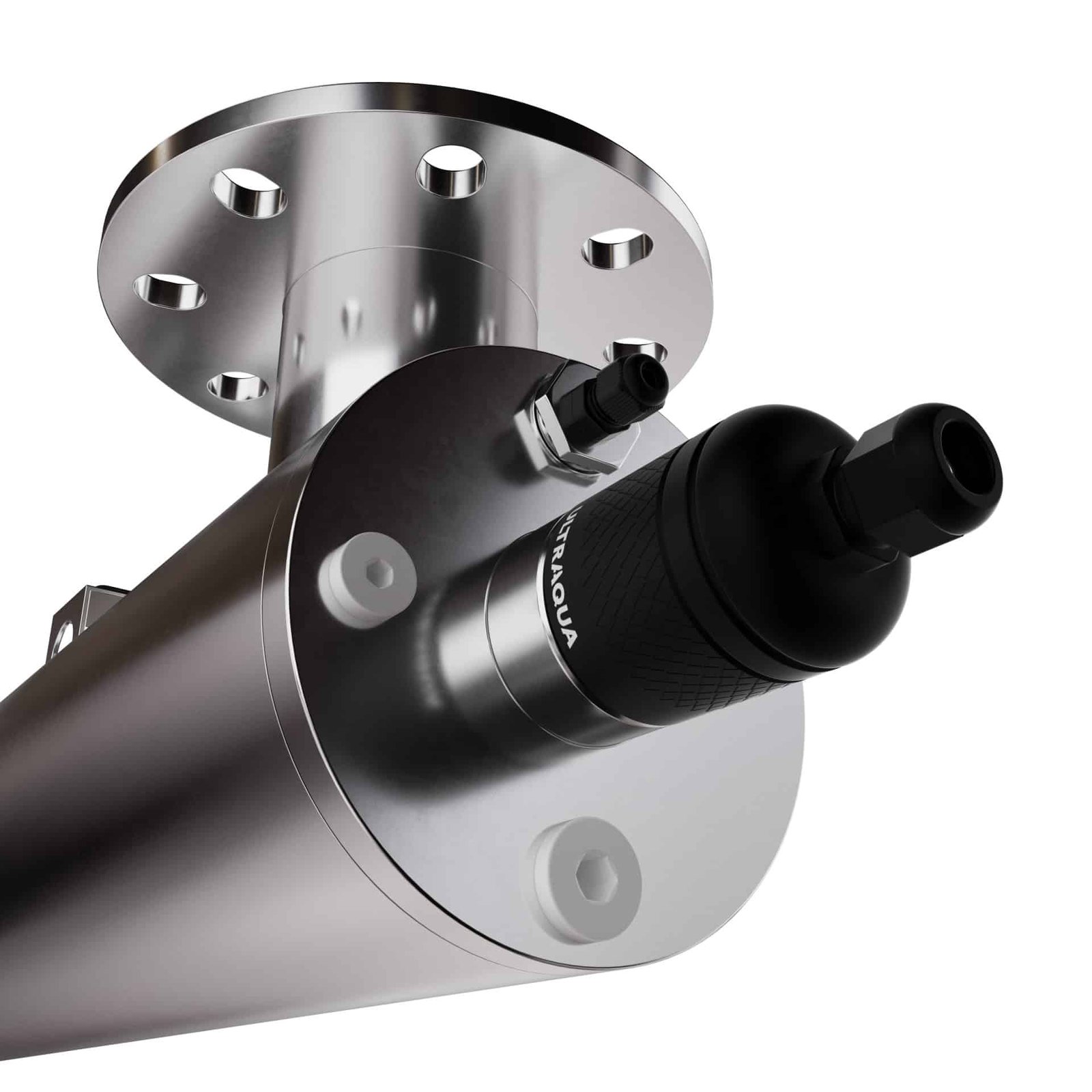

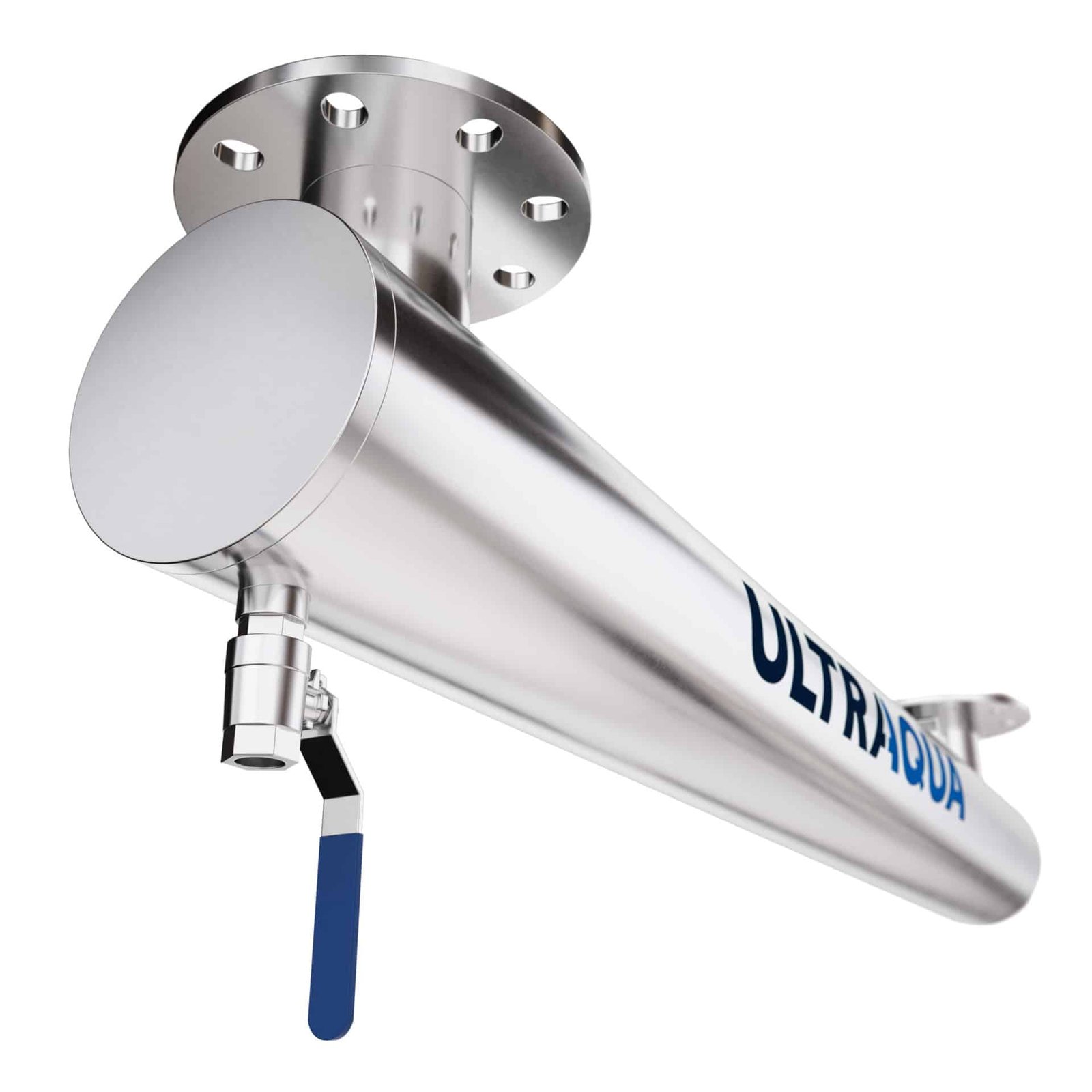

MONORAY™ General Water Disinfection UV Systems

The MONORAY™ series offers reliable and efficient UV disinfection for a wide range of industrial and municipal water applications. The reactors and control cabinets are available in multiple configurations and can be customized for almost any flow rate and application requiring chemical-free UV disinfection.

The MONORAY™ features exceptional lamp lifetime through the integrated ULTRATHERM™ lamps, which offer the very latest low-pressure Amalgam UV lamp technology. The substantial 16.000 hours of lamp lifetime offers market-leading lamp efficiency in UV-C output density. The electropolished reactors provide up to 30% extra energy efficiency due to the internal reflection.

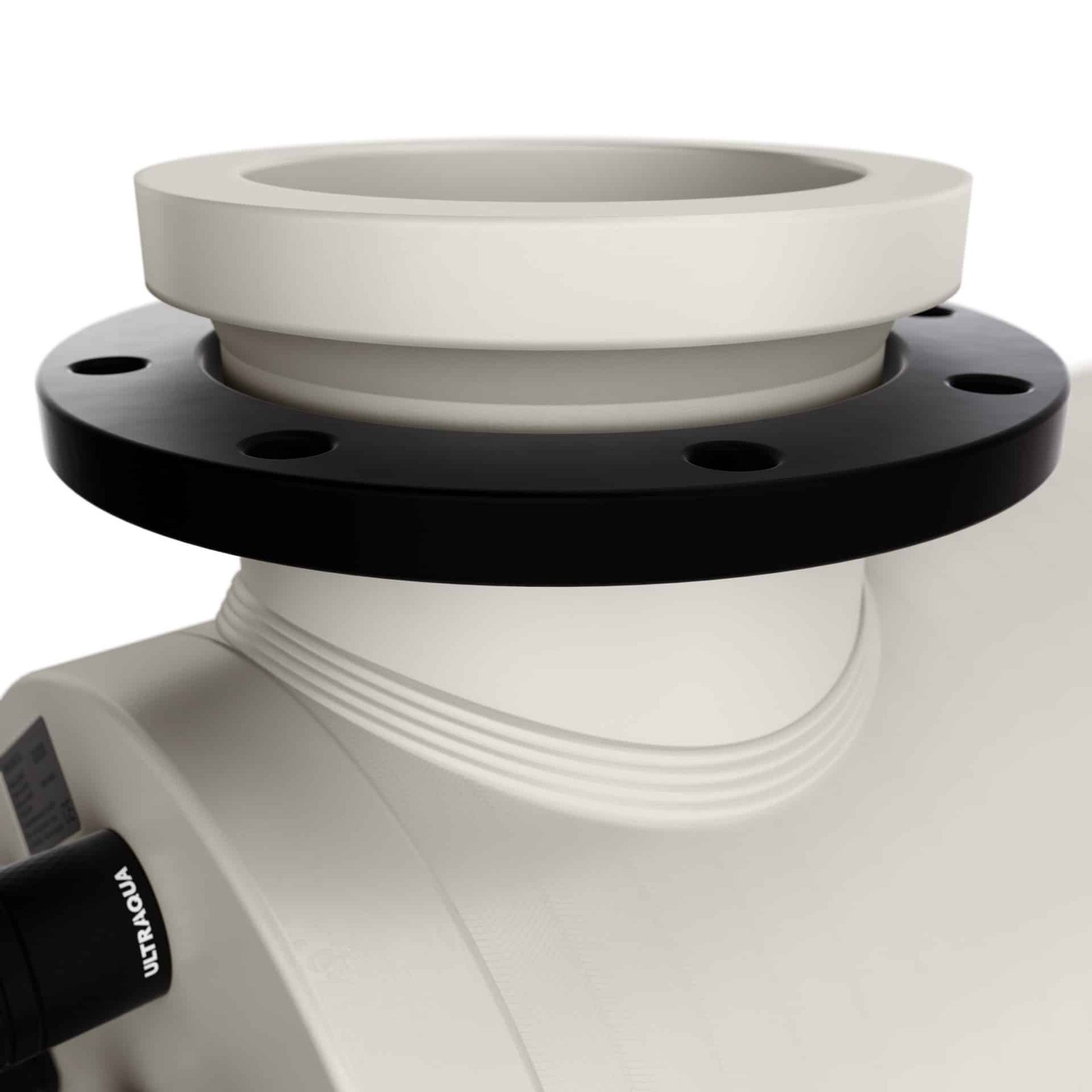

Non-Corrosive PP UV Systems

The Non-Corrosive PP series is developed specifically for disinfection in harsh corrosive environments. The series is based on over 25 years of experience with corrosive fluids, using Polypropylene material which has proven to be superior in warm salt water and other corrosive environments. The material ensures operational excellence across several applications, due to its exceptional durability and resistance towards temperature and pressure.

Equipped with the automated ULTRAWIPER™ wiping system, the PP series becomes an unbeatable water disinfection solution without the hindrance of complex and frequent maintenance. Paired with a control cabinet from non-corrosive GFRP materials, it is able to withstand even the most corrosive water environments found around the globe.

ULTRABARRIER™ Intake Water UV Systems

The ACN ULTRABARRIER™ series is developed specifically for intake water UV disinfection in the aquaculture industry. The ULTRABARRIER™ creates a ‘firewall’ that ensures no harmful microorganisms enter the production to potentially compromise the livelihood and quality of the species.

CFD optimized reactor chambers provide an even UV dose distribution with minimum head loss, combined with a double UV intensity monitoring system to ensure operational efficiency.

The ACN ULTRABARRIER™ series has been validated and approved by the Norwegian Veterinary Institute (NVI) for intake water disinfection in the Norwegian aquaculture industry.

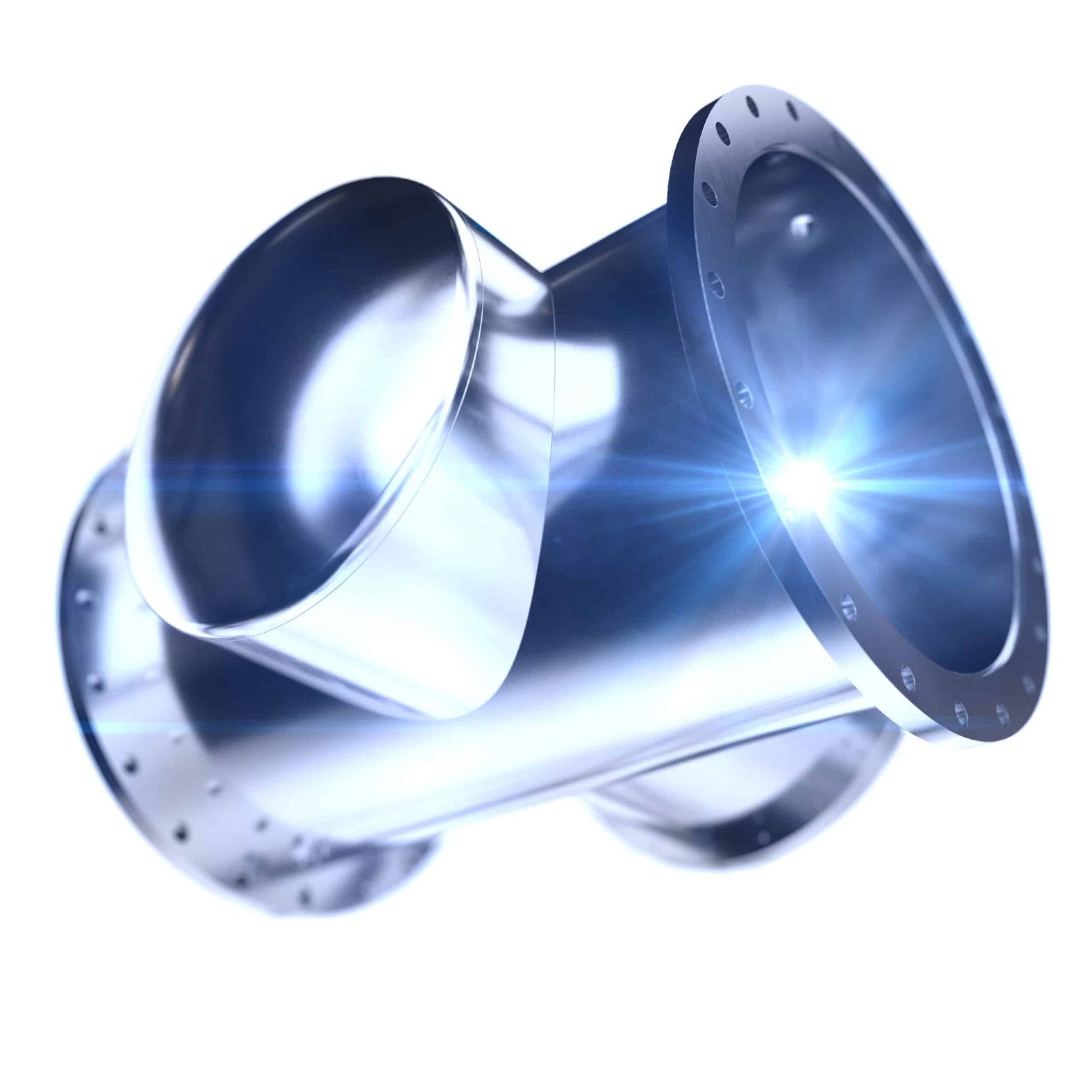

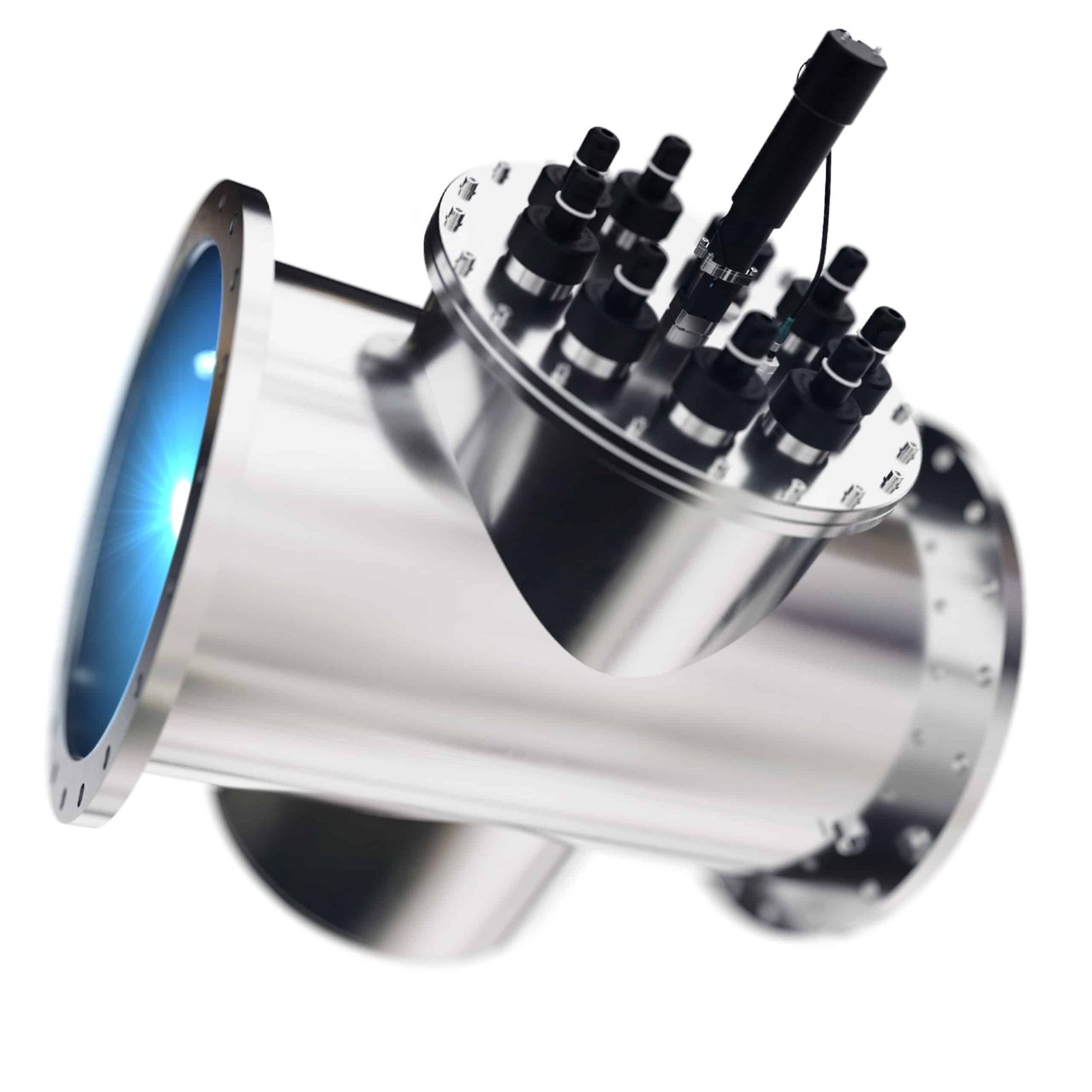

ULTRATRON™ UV Disinfection Systems

The ULTRATRON™ series is based on the latest Medium-Pressure High Intensity (MPHI) lamp technology, optimized for high flow applications where a small footprint is essential and high-power densities are required. The integrated ULTRATHERM™ Medium Pressure High Intensity (MPHI) lamps offers market leading lamp efficiency in UV-C output density with 9 000 hours guaranteed lamp lifetime.

The ULTRATRON™ series is easily integrated into the most complex environments, both vertically and horizontally. The flanged connection is suitable into existing infrastructure, which makes it ideal for retrofitting at almost any scale. The compact reactor and CFD optimized lamp placing allows maximum hydraulic efficiency throughout the entire UVT range with minimum head loss.

The internal reflection of the electropolished system provides efficiency improvements of up to 30% at high UVT’s, making the ULTRATRON an ideal product range for general disinfection as well as for advanced photocatalytic applications. Additionally, the lamps include a stabilizing design to ensure that the system is protected against any residual vibrations or shocks.

ULTRATRON™ Advanced Oxidation Process UV Systems

Advanced Oxidation Processes (AOP) is a common name for the chemical/photochemical reactions that generate OH-radicals in the water, with the purpose of degrading persistent and toxic chemical compounds. Typical examples of UV based advanced oxidation processes are UV/Hydrogen Peroxide, UV/Chlorine, UV/Ozone, UV/Persulfate, and Vacuum-UV.

OH-radicals react fast with most organic compounds in second-order reactions, resulting in complex radical chain reactions that often lead to mineralization of the organic compounds with CO2 and water as end products. AOP is frequently employed as a final polishing step in many water treatment applications, to provide combined disinfection and removal of trace organic compounds to very low levels, thus ensuring water of very high purity.

ULTRAAQUA provides the most efficient and customized AOP solutions using advanced integrated CFD, UV fluence field, and radical chemistry process models with the purpose of calculating and optimizing the space-dependent OH-radical concentration and prediction of the target compound degradation.

The result is a selection of reaction system, lamp type, and optimal reactor design that ensures an efficient treatment process, taking into account the physicochemical characteristics of the water matrix and target compounds. With highly complex water matrices, empirical target compound degradation can be obtained experimentally in ULTRAAQUA’s high-quality research laboratory.

TOC Reduction VUV Systems

Reducing Total Organic Carbon (TOC) is critical in applications such as semiconductors & microelectronics, pharmaceutical, food and beverage, process wastewater, and power generation where even the smallest contaminants can affect the quality of the products, if the microorganisms are allowed to spread through the organic impurities.

The TOC Reduction VUV series include ULTRATOX™ VUV lamps which are emitting light at 185nm wavelength – light that has more energy than the 254nm used in standard UV water disinfection applications. This vacuum UV light energy promotes the formation of OH- radicals from the photolysis of water. The OH-radicals react with the organic matter in the water leading to the oxidation into CO2 (carbon dioxide) and H20 (water), resulting in the removal of TOC.

The TOC Reduction VUV series has been optimized through a combined chemical process and CFD modeling approach. For additional improved efficiency, the system can be combined with the addition of other oxidants such as hydrogen peroxide and ozone.

ULTRABARRIER™ PP Intake Water Disinfection Systems

The ACN ULTRABARRIER™ Non-Corrosive PP series is designed specifically for intake water disinfection for rearing and sustaining warm saline water species in the aquaculture industry, to recreate the natural environment of the selected species. The series ensures that no harmful microorganisms enter the production to potentially compromise the livelihood and quality of the species.

The PP material makes the ULTRABARRIER™ series capable of withstanding even the most saline water environments. The CFD optimized reactor chambers provide an even UV dose distribution with minimum head loss, combined with a double UV intensity monitoring system to ensure operational efficiency against pathogens such as IPNV, CSV and Costia Necatrix.

The ACN ULTRABARRIER™ series has been validated and approved by the Norwegian Veterinary Institute (NVI) for intake water disinfection in the Norwegian aquaculture industry.

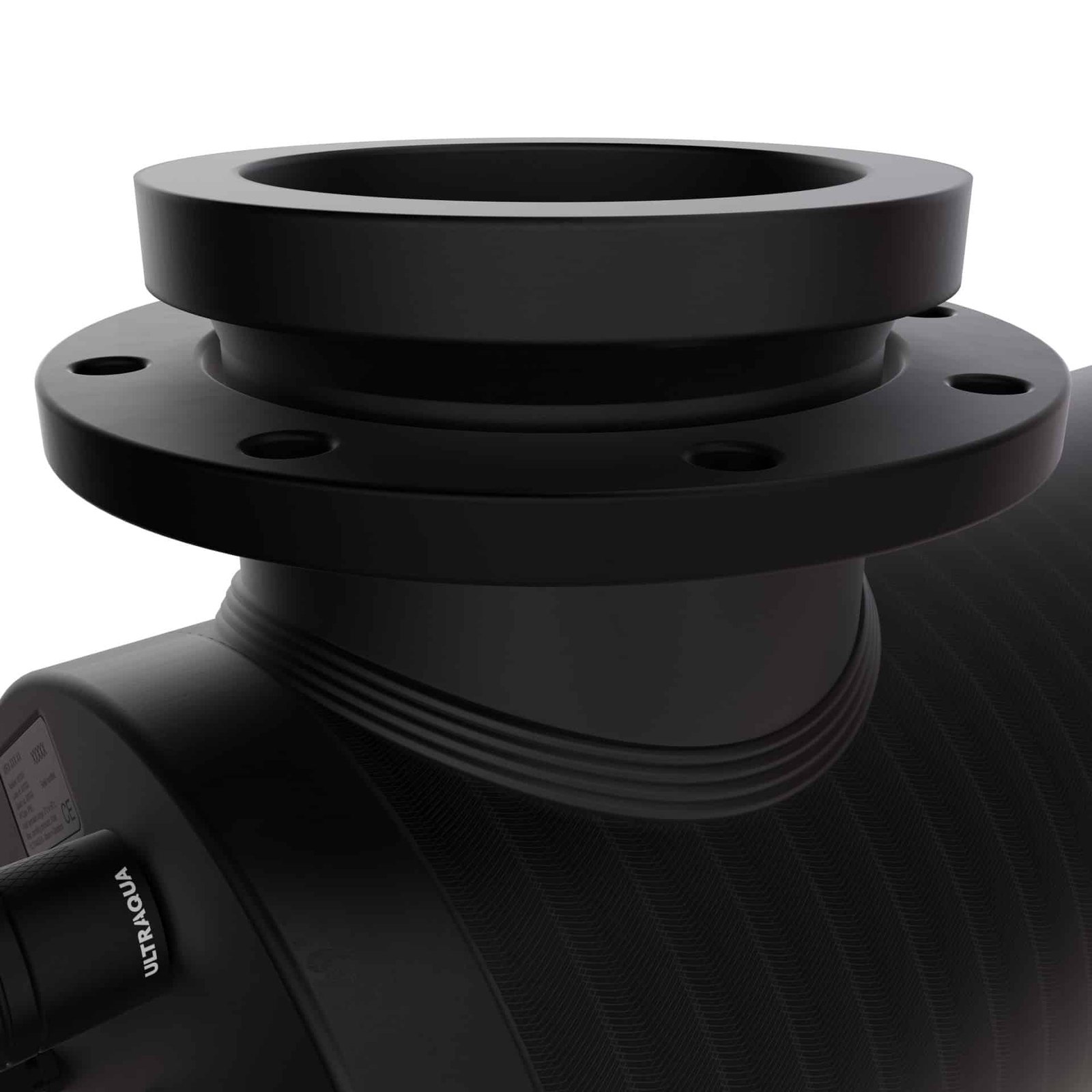

Non-Corrosive PEHD UV Systems

The Non-Corrosive PEHD series features closed vessel systems made from high-density polyethylene (PEHD), ideal for highly corrosive environments and ozone destruction in seawater. Besides its resilience against temperature fluctuations, PEHD is extremely resistant to pressure, salts, acids, oils, and is non-corrosive making it a preferred solution for challenging environments in the industrial and aquaculture sectors.

For additional stability and efficiency, the PEHD series is capable of being equipped with non-corrosive PTFE or corrosion-resistant ÖNORM certified UV sensors, as well as the automatic quartz sleeve wiping technology ULTRAWIPER™. The ULTRAWIPER™ technology makes it possible to only perform maintenance checks annually, by eliminating the need for continuous manual cleaning. All these design functions are created to ensure exceptional operational efficiency and maintenance convenience.

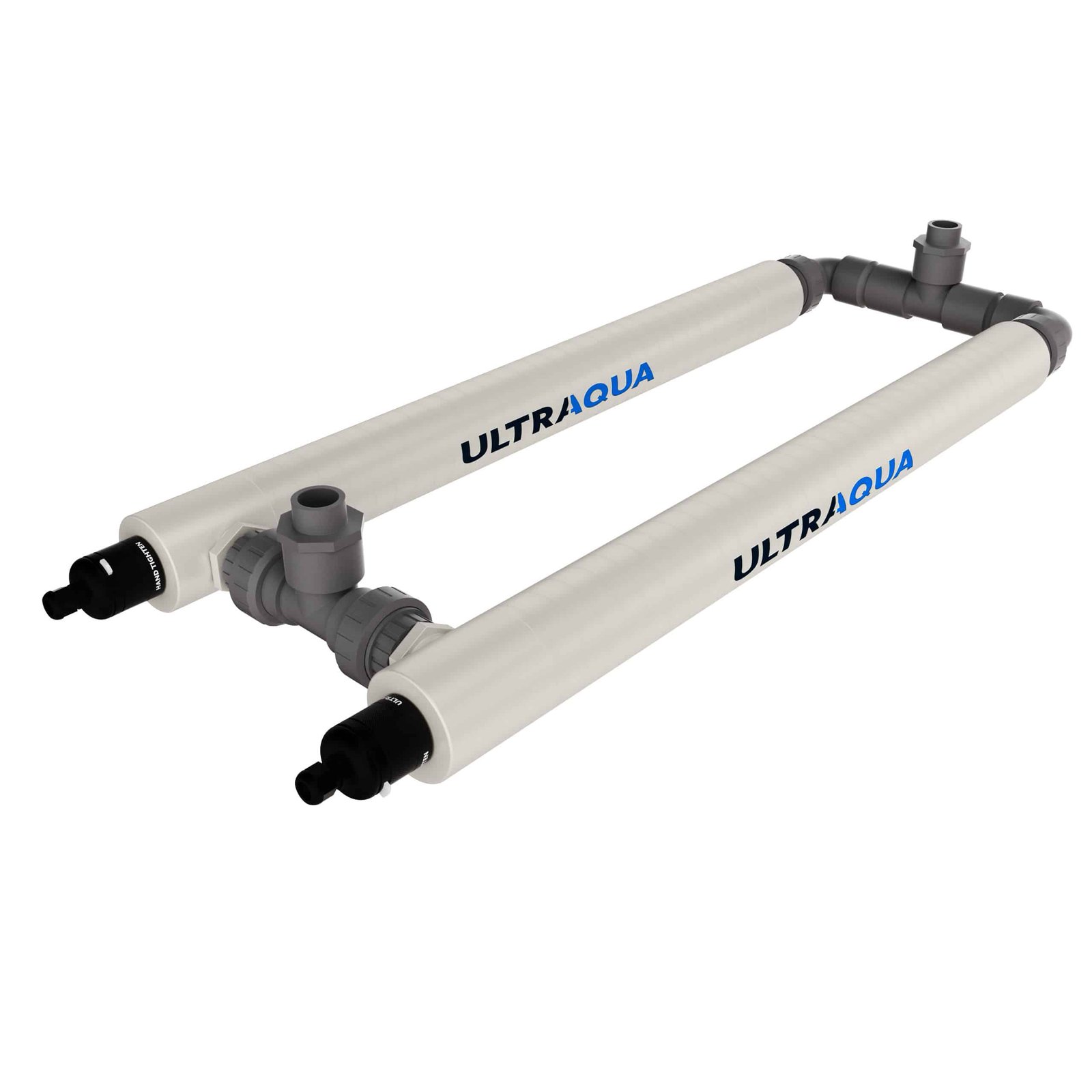

Low Flowrate Non-Corrosive PP UV Systems

The Low Flowrate PP series is designed for disinfection in the most challenging and corrosive environments. The series features a compact 1-4 lamp setup, tailored for applications with low flowrate ranges. The series is based on over 25 years of experience with corrosive fluids, using Polypropylene material which has proven to be superior in warm salt water and other corrosive environments.

Equipped with the automated ULTRAWIPER™ wiping systems, the PP series becomes an unbeatable water disinfection solution without the hindrance of complex and frequent maintenance. Paired with a control cabinet from non-corrosive GFRP materials, it is able to withstand even the most corrosive water environments found around the globe.
