Compact Filtration Systems
COMPACT
ADEC Compact systems are designed to be a user-friendly, technologically advanced and with low energy consumption. They provide the high-quality filtration process needed by public aquariums and aquaculture specialists in a single unit and take up minimum space. Reliable life support systems with a range up to 40,000 litres for fresh and saltwater systems.
User benefits:
- Durability, long lasting
- Industrial strength materials
- Minimal maintenance
- Low energy consumption
- Expandable and customizable
- Available with SCADA integration
- For both Fresh and Saltwater applications
Salt Water Compact Filtration Systems
Technical Specifications

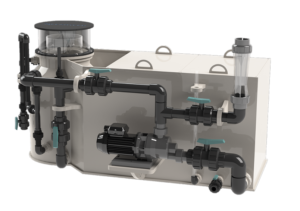

CS - XM

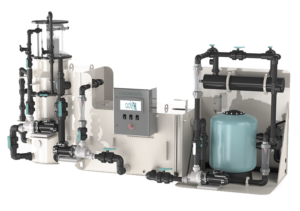

CS - 05
CS - 10

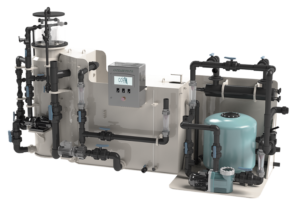

CS - 20
CS - 30
CS - 40
| Circulation Pump(Input/Output) -kW | 0,66/ 0,45 |
| VenturiPump(Input/Output) -kW | – |
| Sand FilterPump(Input/Output) -kW | – |
| Max. Lenght-mm | 1450 |
| Max. Width-mm | 820 |
| Max. Height-mm | 950 |
| Weight (SumpPart/ Sand Filter Part)-kg | 70 / – |
| Operational Weight -kg | 410 |
| Inlet Pipe Diameter -mm | – |
| Outlet Pipe Diameter -mm | Ø50 |
| UV Capacity–m3 | – |
| Sand Filter Diameter-mm | – |
| Total Turnover–Per Hour | 2,3 |
| Circulation Pump(Input/Output) -kW | 0,38 / 0,25 |
| VenturiPump(Input/Output) -kW | 0,66 / 0,45 |
| Sand FilterPump(Input/Output) -kW | 0,66 / 0,45 |
| Max. Lenght-mm | 3245 |
| Max. Width-mm | 980 |
| Max. Height-mm | 1800 |
| Weight (SumpPart/ Sand Filter Part)-kg | 175 / 200 |
| Operational Weight -kg | 925 |
| Inlet Pipe Diameter -mm | Ø- |
| Outlet Pipe Diameter -mm | Ø50 |
| UV Capacity–m3 | 5 |
| Sand Filter Diameter-mm | Ø500 |
| Total Turnover–Per Hour | 2,6 |
| Circulation Pump(Input/Output) -kW | 0,71 / 0,55 |
| VenturiPump(Input/Output) -kW | 0,66 / 0,45 |
| Sand FilterPump(Input/Output) -kW | 0,63 / 0,45 |
| Max. Lenght-mm | 3500 |
| Max. Width-mm | 1140 |
| Max. Height-mm | 2050 |
| Weight (SumpPart/ Sand Filter Part)-kg | 220 / 330 |
| Operational Weight -kg | 1550 |
| Inlet Pipe Diameter -mm | Ø75 |
| Outlet Pipe Diameter -mm | Ø63 |
| UV Capacity–m3 | 10 |
| Sand Filter Diameter-mm | Ø650 |
| Total Turnover–Per Hour | 2,2 |
| Circulation Pump(Input/Output) -kW | 1,9 / 1,6 |
| VenturiPump(Input/Output) -kW | 0,97 / 0,75 |
| Sand FilterPump(Input/Output) -kW | 1,26 / 1,00 |
| Max. Lenght-mm | 4530 |
| Max. Width-mm | 1340 |
| Max. Height-mm | 2250 |
| Weight (SumpPart/ Sand Filter Part)-kg | 350 / 950 |
| Operational Weight -kg | 3200 |
| Inlet Pipe Diameter -mm | Ø90 |
| Outlet Pipe Diameter -mm | Ø75 |
| UV Capacity–m3 | 20 |
| Sand Filter Diameter-mm | Ø950 |
| Total Turnover–Per Hour | 2,05 |
| Circulation Pump(Input/Output) -kW | 1,9 / 1,6 |
| VenturiPump(Input/Output) -kW | 0,97 / 0,75 |
| Sand FilterPump(Input/Output) -kW | 1,77 / 1,50 |
| Max. Lenght-mm | 5050 |
| Max. Width-mm | 1850 |
| Max. Height-mm | 2450 |
| Weight (SumpPart/ Sand Filter Part)-kg | 500 / 1300 |
| Operational Weight -kg | 4700 |
| Inlet Pipe Diameter -mm | Ø110 |
| Outlet Pipe Diameter -mm | Ø90 |
| UV Capacity–m3 | 30 |
| Sand Filter Diameter-mm | Ø1050 |
| Total Turnover–Per Hour | 2,17 |
| Circulation Pump(Input/Output) -kW | 4,55 / 4,00 |
| VenturiPump(Input/Output) -kW | 1,33 / 1,10 |
| Sand FilterPump(Input/Output) -kW | 1,77 / 1,50 |
| Max. Lenght-mm | 5700 |
| Max. Width-mm | 1950 |
| Max. Height-mm | 2950 |
| Weight (SumpPart/ Sand Filter Part)-kg | 650 / 2000 |
| Operational Weight -kg | 6900 |
| Inlet Pipe Diameter -mm | Ø125 |
| Outlet Pipe Diameter -mm | Ø110 |
| UV Capacity–m3 | 40 |
| Sand Filter Diameter-mm | Ø1250 |
| Total Turnover–Per Hour | 2,05 |
Fresh Water Compact Filtration Systems
Technical Specifications
CSF - MIC
CSF - F05
CSF - 10
CSF - 20
CSF - 30
CSF - 40
| Circulation Pump(Input/Output) -kW | 0,66 / 0,45 |
| Max. Lenght-mm | 1400 |
| Max. Width-mm | 780 |
| Max. Height-mm | 1100 |
| Weight (Sump Part)-kg | 60 |
| Operational Weight -kg | 360 |
| Inlet Pipe Diameter -mm | – |
| Outlet Pipe Diameter -mm | Ø50 |
| UV Capacity–m3 | – |
| Total Turnover–Per Hour | 2,33 |
| Circulation Pump(Input/Output) -kW | 0,38 / 0,25 |
| Sand Filter Pump (Input/Output) -kW | 0,66 / 0,45 |
| Max. Lenght-mm | 2500 |
| Max. Width-mm | 980 |
| Max. Height-mm | 1600 |
| Weight (SumpPart/ Sand Filter Part)-kg | 130 / 200 |
| Operational Weight -kg | 750 |
| Inlet Pipe Diameter -mm | – |
| Outlet Pipe Diameter -mm | Ø50 |
| UV Capacity–m3 | 5 |
| Sand Filter Diameter-mm | Ø500 |
| Total Turnover–Per Hour | 2,6 |
| Circulation Pump(Input/Output) -kW | 0,71 / 0,55 |
| Sand Filter Pump (Input/Output) -kW | 0,63 / 0,45 |
| Max. Lenght-mm | 3200 |
| Max. Width-mm | 1140 |
| Max. Height-mm | 1650 |
| Weight (SumpPart/ Sand Filter Part)-kg | 170 / 330 |
| Operational Weight -kg | 1450 |
| Inlet Pipe Diameter -mm | Ø75 |
| Outlet Pipe Diameter -mm | Ø63 |
| UV Capacity–m3 | 10 |
| Sand Filter Diameter-mm | Ø650 |
| Total Turnover–Per Hour | 2,2 |
| Circulation Pump(Input/Output) -kW | 1,90 / 1,60 |
| Sand Filter Pump (Input/Output) -kW | 1,26 / 1,00 |
| Max. Lenght-mm | 3880 |
| Max. Width-mm | 1340 |
| Max. Height-mm | 2000 |
| Weight (SumpPart/ Sand Filter Part)-kg | 300 / 950 |
| Operational Weight -kg | 3100 |
| Inlet Pipe Diameter -mm | Ø90 |
| Outlet Pipe Diameter -mm | Ø75 |
| UV Capacity–m3 | 20 |
| Sand Filter Diameter-mm | Ø950 |
| Total Turnover–Per Hour | 2,05 |
| Circulation Pump(Input/Output) -kW | 1,90 / 1,60 |
| Sand Filter Pump (Input/Output) -kW | 1,77 / 1,50 |
| Max. Lenght-mm | 4500 |
| Max. Width-mm | 1850 |
| Max. Height-mm | 2550 |
| Weight (SumpPart/ Sand Filter Part)-kg | 450 / 1300 |
| Operational Weight -kg | 4750 |
| Inlet Pipe Diameter -mm | Ø110 |
| Outlet Pipe Diameter -mm | Ø90 |
| UV Capacity–m3 | 30 |
| Sand Filter Diameter-mm | Ø1050 |
| Total Turnover–Per Hour | 2,17 |
| Circulation Pump(Input/Output) -kW | 4,55 / 4,00 |
| Sand Filter Pump (Input/Output) -kW | 1,77 / 1,50 |
| Max. Lenght-mm | 5250 |
| Max. Width-mm | 1950 |
| Max. Height-mm | 2650 |
| Weight (SumpPart/ Sand Filter Part)-kg | 600 / 2000 |
| Operational Weight -kg | 6800 |
| Inlet Pipe Diameter -mm | Ø125 |
| Outlet Pipe Diameter -mm | Ø110 |
| UV Capacity–m3 | 40 |
| Sand Filter Diameter-mm | Ø1250 |
| Total Turnover–Per Hour | 2,05 |
